Aircraft Actuators

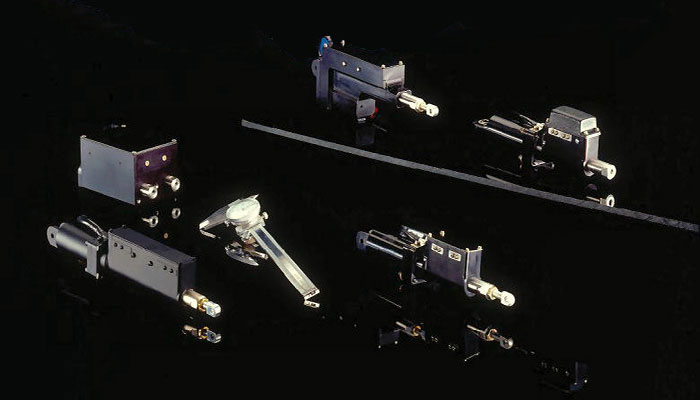

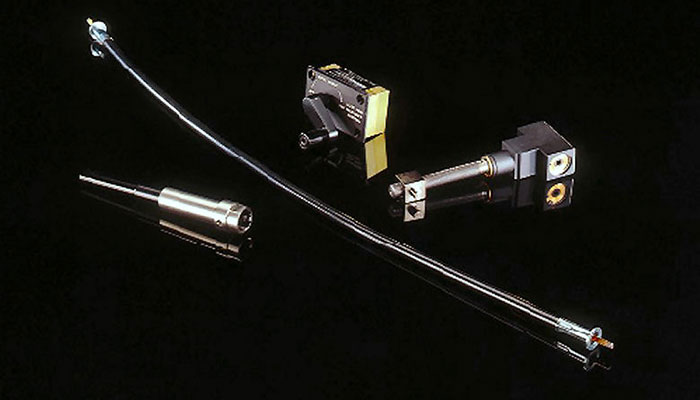

Aero Space Controls produces aircraft Linear and Rotary Actuators to control movement in many applications, such as trim tab, cowl flap, louver, valve actuation, duct butterfly actuation, rudder pedal adjust, and many others.






Actuator Designs

Linear
(other designs available)

P/N

Nominal Load/Max Load

Max Stroke

Description

Product Details
(Note: These items are in PDF format)

2005A100-3 10 lbs./10 lbs. 1.62 inch Single ram actuator, manually operated.

1092TH100-47 50 lbs./50 lbs. 1.20 inch Single ram actuator, 28VDC.

1092TR100-14 50 lbs./50 lbs. 0.75 inch Single ram actuator, with position feedback, 28VDC.

1092TR100-18 50 lbs./50 lbs. 0.40 inch Single ram actuator, with position feedback, 28VDC.

1092TH100-3S 50 lbs./50 lbs. 3.37 inch Single ram actuator, with extend indication, 28VDC.

2006A100-5 50 lbs./110 lbs. 0.86 inch Dual ram actuator, with position feedback, 28VDC.

2007-0003 50 lbs/50 lbs. 3.38 inch Single ram actuator, 28VDC.

2004A300-1 78 lbs./118 lbs. 0.70 inch Dual ram actuator, with position feedback, 28VDC.

2007-0010 100 lbs./150 lbs. 1.50 inch Single ram actuator, with position feedback, 28VDC.

2007-0008 110 lbs./150 lbs. 1.91 inch Single ram actuator, 28VDC.

2007-0013 110 lbs./150 lbs. 2.79 inch Single ram actuator, 28VDC.

2007-0014 110 lbs./150 lbs. 0.75 inch Single ram actuator, with position feedback, 28VDC.

2007-0015 110 lbs./150 lbs. 1.91 inch Single ram actuator, with end position indication, 28VDC.

2007-0019 157 lbs./225 lbs. 1.57 inch Single ram actuator, 28VDC.

2007-0026 120 lbs./150 lbs. 1.25 inch Single ram actuator, with position feedback, 28VDC.
2007-0028 25 lbs./40 lbs. 2.15 inch Single ram actuator, with manual override, 28VDC.
2006A100-7 150 lbs./290 lbs. 1.43 inch Dual ram actuator, with position feedback, 28VDC.

2008A100-1 260 lbs./700 lbs. 0.88 inch Single ram actuator, with position feedback, 28VDC.

2018A100-3 75 lbs./150 lbs. 0.60 inch Dual ram actuator, with position feedback, external input required.


Rotary
(other designs available)

P/N

Nominal Load/Max Load

Max Stroke

Description

Product Details
(Note: These items are in PDF format)

1001A100-3 10 lbs./20 lbs. 2.00 inch Capstan actuator, with position feedback, 28VDC.

1003A100-1 5 lbs./20 lbs. 90 degrees Rotary actuator, with position feedback at end points, 28DVC.
1619T100-29 10 lbs./20 lbs. 270 degrees Rotary actuator, 28VDC.

1619T100-31 10 lbs./10 lbs. 90 degrees Rotary actuator, 28VDC.
