Aircraft Motors

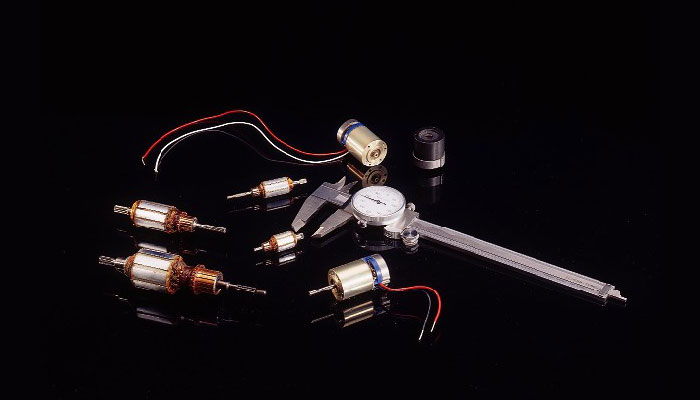

Aero Space Controls produces DC electric aircraft motors for a number of applications, including actuator, air conditioning and flap positioning systems. The company has a successful history of producing electric motors for aerospace and defense applications.



Motor Designs
(other designs available)

P/N

Type

Diameter

Description

Product Details
(Note: These items are in PDF format)

7001-0001 Flap w/Gear Reducer 2.0 inch 14 VDC, rated 30 in. lb. @ 70rpm, 60 in. lb. stall load.

FS28-1 Flap 2.0 inch 14 VDC, rated 6.4 in. oz. @ 5,200rpm, 12.8 in. oz. stall load.

FS14-7 Landing Gear w/Brake 2.0 inch 28 VDC, rated 50 in. oz. @ 6,400 rpm, 144 in. oz. stall load.

PM45-3 Blower 2.0 inch 28 VDC, rated speed 8,000 rpm.

FS30-5 Flap w/Brake 2.5 inch 28 VDC, rated 30 in. oz. @ 5,700 rpm.

FS33 Landing Gear w/Brake 2.5 inch 28 VDC, rated 30 in. oz. @ 4,500 rpm, stall load 60 in. oz.

FS36-1 Flap 2.75 inch 28 VDC, rated 40 in. oz. @ 5,800 rpm, stall load > 60 in. oz.

GFS38-1 Flap w/Gear Reducer 2.75 inch 28 VDC, rated 50 in. lb. @ 80 rpm.

KSH9-5 Air Conditioner 4.0 inch 28 VDC, rated 27 in. lb. @ 5,200 rpm, 2.3 H.P.
