Aircraft Air Conditioning Systems and Components

Aero Space Controls designs and manufactures aircraft air conditioning systems, to provide cooling to the cabin, or to heat sensitive, onboard equipment. The system designs can be compact self-contained packages, or individual components located throughout the aircraft, with the option of electric motor or engine driven compressors.

Air Conditioning Designs
(other designs available)

P/N

Type

Description

Product Details
(Note: These items are in PDF format)

1523202-2 Blower 125-225 CFM, 28VDC.

1523296-2 Blower 150 CFM, 28VDC.

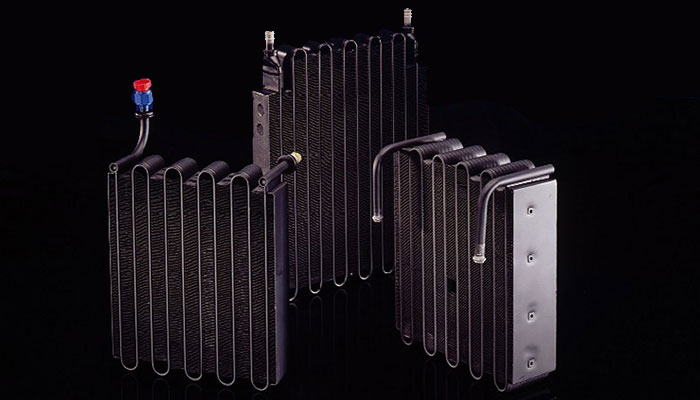

1523510-3 Condenser 21,000 BTUH, multiple refrigerant compatible.

1523540-1 Condenser 33,000 BTHU, multiple refrigerant compatible.

1900200-29 Condenser/Compressor 8,000 to 16,000 BTHU system, 28VDC.

1954T100-1 Evaporator 5,500 BTUH, multiple refrigerant compatible.

1523280 series Evaporator Module 6,000 BTUH, multiple refrigerant compatible, 28VDC.

1523260-190A2A4 Evaporator Module 8,000 BTUH, multiple refrigerant compatible, 28VDC.

1523300-10A1 Evaporator Module 12,000 BTUH, multiple refrigerant compatible, 28VDC.

1523800-35 Evaporator Module 16,000 BTUH, multiple refrigerant compatible, 28VDC.

1523258-3 Receiver Dryer (-06) female ports, multiple refrigerant compatible, 9.0"H x 2.5" Diameter.

1523258-5 Receiver Dryer 3/8" SAE male ports, multiple refrigerant compatible, 9.0"H x 2.5" Diameter.

1523920-3 Receiver Dryer (-06) female ports, multiple refrigerant compatible, 10.0"H x 3.0" Diameter.

1523920-7 Receiver Dryer 3/8" SAE male ports, multiple refrigerant compatible, 4.25"H x 3.0" Diameter

1936T100-7 Receiver Dryer (-08) female ports, multiple refrigerant compatible, 10.5"H x 2.75" Diameter.

1942T100-9 Temperature Sensor Cabin sensor.

1942T100-11 Temperature Sensor Cabin sensor.
